Adding the Global Precipitation Layer to Your ArcGIS Online Catalog

In recent posts, we covered adding HERE basemaps to AGOL and explored the HERE Destination Weather Premium API.

Today, I am combining the ideas from the two to show you how easy it is to add the Global Precipitation layer to your ArcGIS online (AGOL) content catalog using HERE Destination Weather API.

If you remember, the key difference between accessing HERE Destination Weather API Premium v2 and v3 is in the header definitions, where in V3 if not defined the browser does not understand it is receiving img as a response. Because of this, adding the v3 premium layer to your catalog might not be as straightforward as it seems. So, for this example, I'll be using v2 as it works just as good for this use-case.

Project Prerequisites:

• A working HERE Weather Premium API key

• Access to Map Viewer in AGOL

Step 1: Test the API Key

Before getting started, make sure your HERE Weather Premium API key is working correctly.

Paste this url in the browser and if the img is returned you are good to go!

https://weather.hereapi.com/weather/2.0/tile/9/456/196/2?apiKey={API_KEY}

Copy

Replace {API_KEY} with your actual key. If the request is successful, it confirms that your Premium access is active. Otherwise, you may need to contact HERE support to verify your API key’s status.

Step 2: Open Map Viewer in AGOL

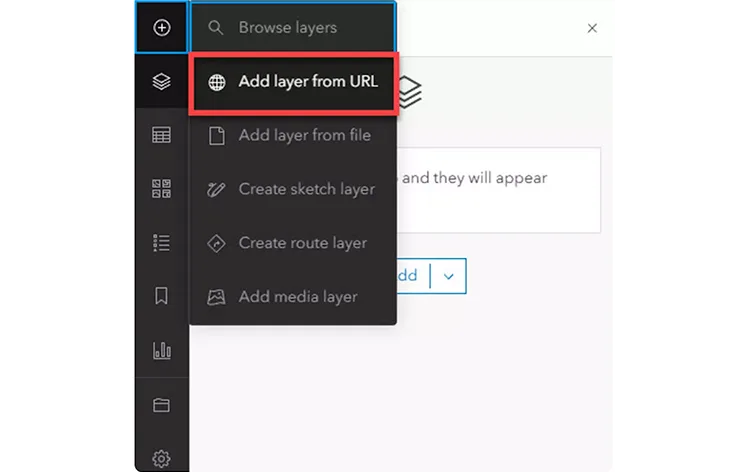

Navigate to the Add Layer section within the Map Viewer and select Add layer from URL

Step 3: Add the Tile Layer

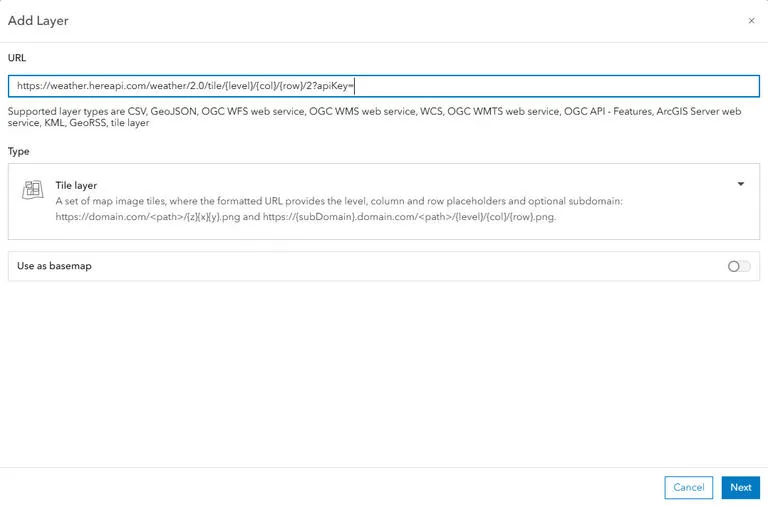

Paste the tile API request url into the Add Layer -> URL section and adjust the layer settings.

https://weather.hereapi.com/weather/2.0/tile/{level}/{col}/{row}/2?apiKey={API_KEY}

Copy

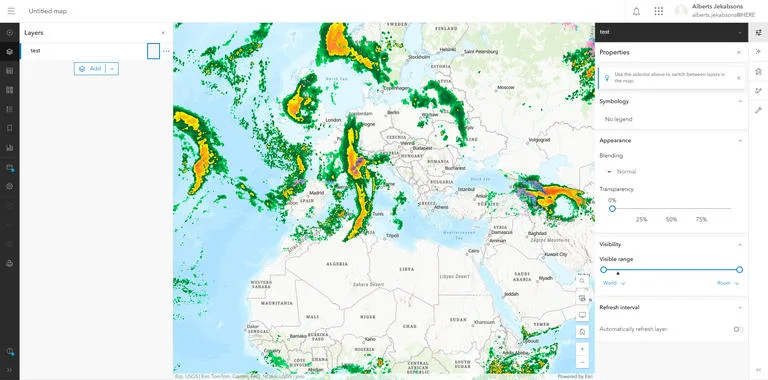

Click Next and name the layer. Then click Add to Map and you will have the HERE Global Precipitation layer on your AGOL.

Set the necessary layer properties in the Properties panel and Save it to your Content for your organization and yourself to use!

Have fun with geospatial!
